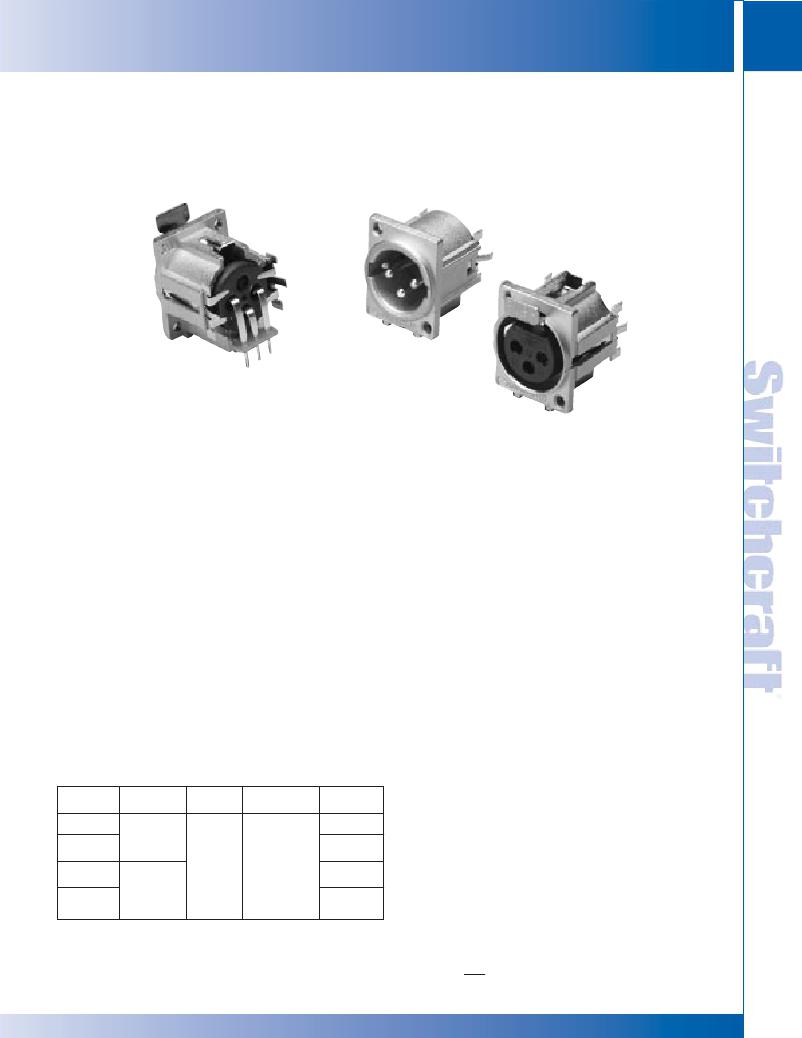

F SERIES RECEPTACLES
F3MSTF
F3FRAF
F3FSTF
23
Switchcraft now offers the F Series. Available in male and
female, the receptacles can be mounted from the rear of the
panel. Features include an all metal housing with a ferrite
disk for added EMI/RMI shielding. Both male and female
connectors can be mounted vertical or horizontal to the PC
board. All connectors have a PC-board retention feature to
hold the connectors firmly to the PC board prior to soldering.
See the chart below for part numbers.
F SERIES FEATURES
? Replaces Cannon XLM-Series
? 3-pin contact; male and female types
? Both male and female fit in same panel cutout
? Locking receptacles
? Silver-plated contacts
? Rugged metal shells; satin nickel finishes
? Through-the-shell ground connection and all-metal shells
for greater shielding effectiveness
? Compatible with Switchcraft Q-G ? , QGP and other
connectors with similar configurations
? Added EMI/RFI ferrite shield
SPECIFICATIONS:
ELECTRICAL
Contact Resistance: 50 milliohms maximum, per pole.
Current Rating: 15A
Insulation Resistance: 1,000 M ?
Dielectric Resistance: 1,000 V rms
Capacitance: 2 to 4 pF
MECHANICAL
Insertion/Withdrawal Forces: 7 pounds maximum/nominal
Insertion: 7 pounds maximum withdrawal.
Life: 10,000 operations (minimum).
ENVIRONMENTAL
Thermal Range: -55° C to +85° C
Thermal Shock: Meets MIL-STD-202F, method 107D
Salt Spray: Meets MIL-STD-202F, method 101D (for 16 hrs.)
MATERIAL
Shells: Die-cast; satin-nickel plated
Inserts: Glass-filled thermoplastic.
Part
Number
Terminals
Contacts
Housing
Type
Socket Contacts: Copper alloy, silver-plated.
Pin Contacts: Copper alloy, silver-plated.
F3MSTF
M
Latch Release: Steel, nickel-plated.
F3FSTF
Straight
F
TERMINALS
F3MRAF
F3FRAF
Right Angle
Silver
Satin Nickel
M
F
Two terminations are available on F-Series receptacles:
1. Straight PC-terminals – direct termination to PC-board.
Housing mounts to panel.
2. Right Angle PC terminals – direct termination to
PC-board at right angle. Housing mounts to panel.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
